About descSPIM

descSPIM : affordable but versatile light-sheet microscopy system for tissue clearing end users

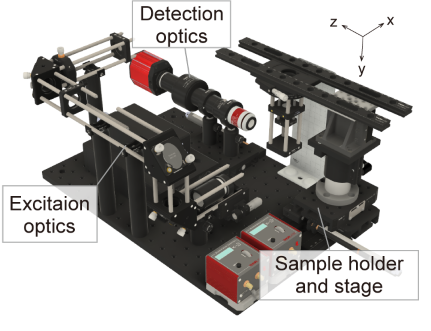

descSPIM_CAD_for_GitHub_middle

What is descSPIM?

descSPIM is a lightsheet microscopy system that we designed to meet the unmet needs of researchers who are using tissue clearing techniques. The system offers a low-cost and easy-to-use solution for 3D imaging of cleared tissue samples that requires little expertise and cost. Most optical components are readily available from a single vendor and can be readily assembled using the instructions provided. These minimal optical parts are arranged on a small optical breadboard. In contrast to existing lightsheet systems, descSPIM is intended to be simple to install, build, and operate, even for end users with no prior experience in optics. descSPIM is also highly expandable and can be customized to suit a variety of applications, making it a versatile tool for a wide range of research projects. With descSPIM, researchers can easily achieve practical-quality 3D imaging of cleared specimens in a daily experiments.

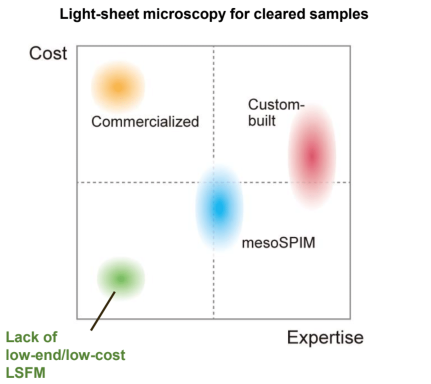

descSPIM_cost_vs_expertise_for_GitHub (1)_middle

The main features of descSPIM are: Easy-to-build Easy-to-operate (use a cuvette / no oil chamber) Affordable ($20k-50k for descSPIM-basic, depending on the number of lasers) Compact (all parts on a 300 mm x 450 mm breadboard)Versatile (highly expandable and customizable)## Who is the descSPIM for?

Researchers interested in using Light-sheet fluorescence microscopy (LSFM) for cleared tissue imaging

What are ideal imaging applications for a descSPIM?

• Macro- to meso-scale imaging of 3D volumetric samples prepared by tissue clearing techniques with strong efficiency (CUBIC, BABB, DISCO, SHIELDs etc.)
• Visualization of cell populations or anatomical structures (e.g. blood vessels, plaques) with cellular to sub-cellular resolutions

Guide to install

It is recommended to start learning

Basic of optics and

Cleared sample preparation,

descSPIM-basic.

Add-on functions are developed to be compatible with the basic system.

Related codes can be available here: Data processing

Terms and Conditions

By using descSPIM, you agree to abide by these terms and conditions:

• This system is only available for academic use. Any use for commercial purposes is strictly prohibited, unless permission is granted by the authors.

• Academic users are allowed to use, apply, and adopt the system in accordance with the CC by 4.0 license policy. This includes modifications, adaptations, and redistribution of the system and its components.

• If any commercial enterprise wants to use, produce, or sell the system, they must contact the authors (suishess-kyu@umin.ac.jp) to request permission.

• All users of the system must acknowledge and refer to the original paper (Otomo et al. bioRxiv 2023) in any publications or presentations resulting from the use of the system.

• The authors are not responsible for any consequences arising from the use of this system as well as related tools, scripts, and software. Users assume all risks and liabilities associated with the use.

• The authors reserve the right to modify or terminate the system and its services at any time, without prior notice.

• Users agree to comply with all applicable laws and regulations regarding the use of the system.

• Any disputes arising from the use of this system shall be resolved through negotiation between the parties. If a resolution cannot be reached, the dispute shall be submitted to binding arbitration in accordance with the laws of Japan.

DescSPIM microscope

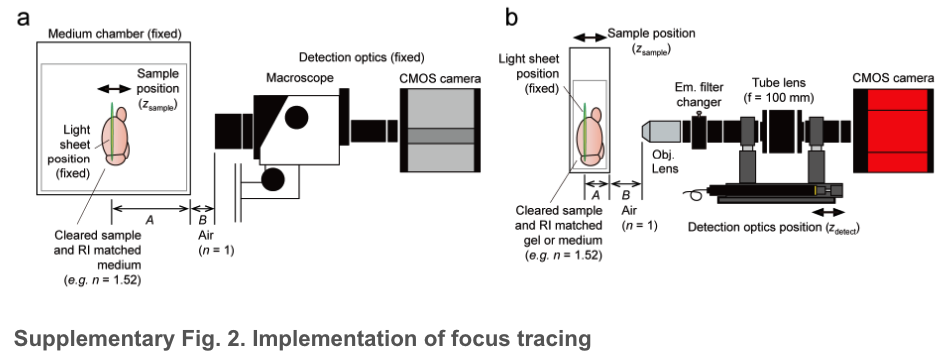

Focus tracing

a. A conventional system with a positionally fixed medium chamber fulfilled with a clearing reagent or a RI-matched immersion oil (e.g., n = 1.52). The sample is moved along the z-axis within the chamber. In this case, the ratio of A (the distance from the chamber wall to the light-sheet illumination, with RI of the immersion reagent) and B (the distance from the objective lens to the chamber wall, with RI of the air (1.0)) is fixed.

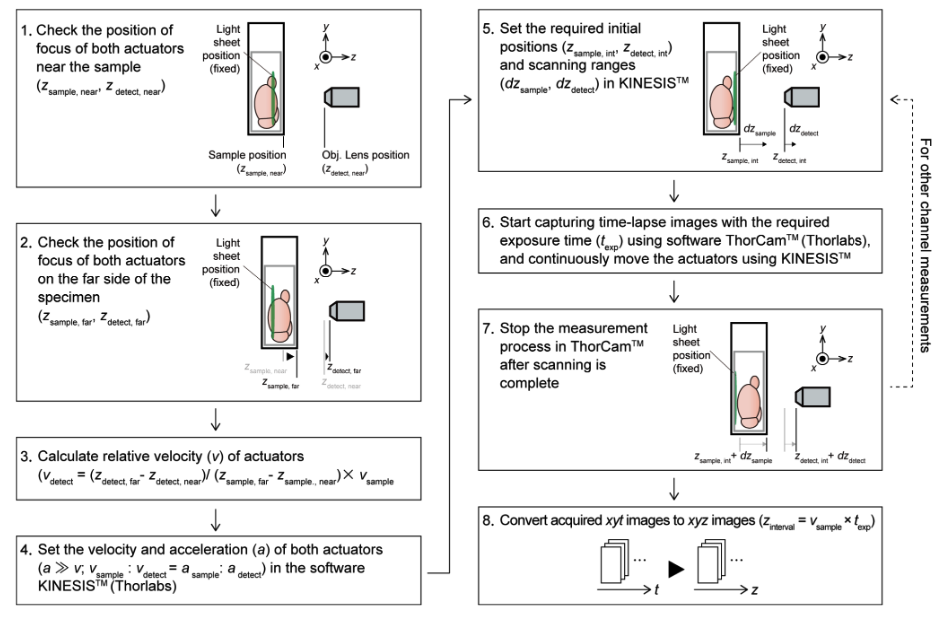

b. descSPIM sample imaging method employing a cuvette as a sample container. In this case, due to the movement of the sample chamber (the cuvette) during imaging, the ratio of A and B is altered, resulting in defocus. descSPIM applies synchronized movement of the sample stage (zsample) and the detection optics (zdetect) to prevent the defocus. See Supplementary Fig. 4 and Methods for details on how to calculate the synchronous speed correction value (the relative velocity of two actuators).

Workflow

Workflow

Light Sheet Fluorescence Microscopy - Applications in research

SPIM_Apps_ideas.docx <- "/Users/marcelorosales/Box Sync/Niigata Uni Box/Books-Notes/Notes/SPIM_Apps_ideas.docx"
#open in mac OS
system(paste("open", shQuote(SPIM_Apps_ideas.docx)))

They use BIO-33 polymer index-math to water Han et al. (2021)

https://youtu.be/-MaPPjqE-ug

short code

• Microfluidics
• Neural transports (fly wings)
• Isotropic imaging
• Functional imaging…
• Segmenting cells in a volume… (photo activate cells based on where cells are)
• Analysis of cellular adhesion, distribution and motility
• cell lineage reconstructions in complex organisms

Papers related to bone, pdl and light sheet microscope (SPIM, selective plane illumination microscope) .

1. Bone osteoprogenitors imaging with SPIM Greenbaum et al. (2017)
2. Neural and Vascular networks of pulp with SPIM França et al. (2019)
3. Three-dimensional histochemistry and imaging of human gingiva Azaripour et al. (2018)
4. 3D cellular visualization of intact mouse tooth Hong et al. (2019)
5. 3D imaging of the cranial microvascular environment at single-cell resolution Rindone et al. (2021)
6. Tissue Clearing and Its Application to Bone and Dental Tissues Jing et al. (2019)
7. 3D imaging of calcium dynamics and 3D imaging of cellular microstructure Sparks et al. (2020)
8. 3D non-invasive analysis of cellular distribution and motility on fibroin-alginate microcarriers Duchi et al. (2017)
   1. Cells adhesion
   2. Cell motility analysis
   3. Cell distribution analysis (see videos)
9. Towards comprehensive cell lineage reconstructions in complex organisms Amat and Keller (2013)

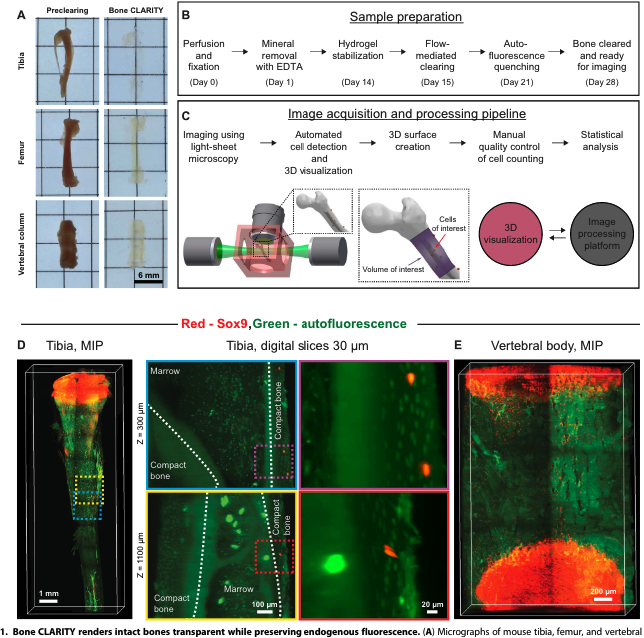

• Bone osteoprogenitors imaging with SPIM Greenbaum et al. (2017):


greenbaum

summary

Different bone types harbor specialized physiological processes that are key for proper development and survival of the organism, such as replenishment of hematopoietic cells, growth, and remodeling of the bone during healthy and diseased state. Whole-bone clearing, light-sheet imaging with a custom-built microscope, and dedicated computational methods for counting fluorescently labeled cells. This trio of methods were used to visualize and quantify the total number of osteoprogenitors contained within a volume of mouse bone and map their 3D spatial distribution in response to a sclerostin antibody (Scl-Ab), a boneforming agent.

others

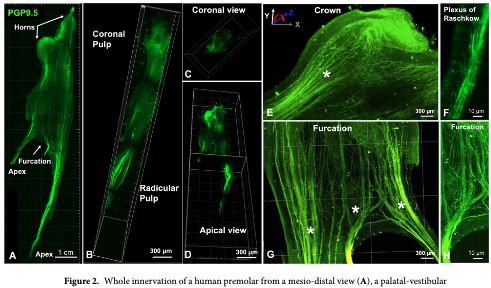

• Neural and Vascular networks of pulp with SPIM França et al. (2019):


Summary

Application of CLARITY to the analysis human teeth, with a special emphasis in the dental pulp innervation and vasculature. Adult canine and premolar teeth extracted for orthodontic reasons, immersed in a 4% formaldehyde, acrylamide and bisacrylamide solution for 72 hours at 4 °C (Fig. 1A). The hydrogel pre-polymer was then thermally polymerized by incubation at 37 °C for 3 h inside a vacuum chamber filled with nitrogen gas. Subsequently the dental pulp/hydrogel hybrids were transferred into conic tubes and immersed in a clearing solution of SDS and boric acid for 6–8 weeks at 37 °C in a passive method to remove the lipid bilayers resulting in a semi-transparent tissue/hydrogel hybrid with preserved structural and molecular information. This hybrid tissue was stained for PGP9.5, a neuron specific marker, and for CD31, an integral membrane glycoprotein which is present in high levels on early and mature endothelial cells, especially at junctions between adjacent cells

• Three-dimensional histochemistry and imaging of human gingiva Azaripour et al. (2018)

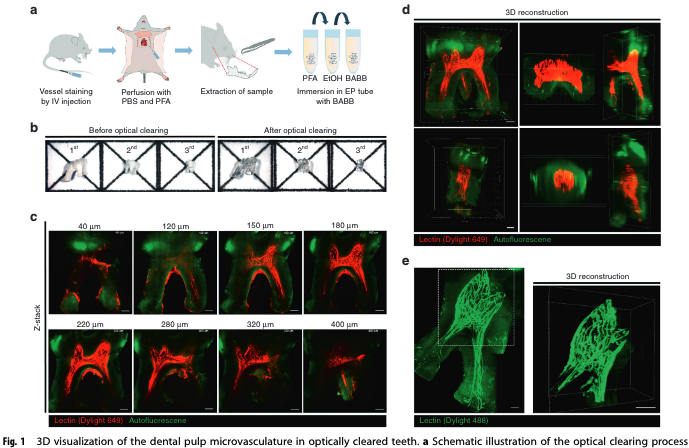

• 3D cellular visualization of intact mouse tooth Hong et al. (2019)

odontoblasts, which are differentiated from DPSCs and located at the pulp-dentin interface, perform the specialized function of dentin maintenance by controlling the mineralization of reactive dentin and represent the first barrier against pathogens.

visualized the whole microvasculature in the dental pulp of an intact mouse tooth after systemic fluorescence labeling. In addition, the 3D distribution of immune cells expressing CD11cYFP or CX3CR1-GFP in the dental pulp, the recruitment of granulocytes, and the vascular changes in a carious tooth were successfully visualized at the cellular level.

@hong2019

Blood vessels (red) stained by Dylight 649-conjugated tomato lectin and autofluorescence (green)

e) Maximal intensity Z-projection image of an upper third molar showing blood vessels (green) stained by Dylight 488-conjugated tomato lectin and autofluorescence (green).

a) Maximal intensity Z-projection image of an upper second molar extracted from a CD11c-YFP transgenic mouse, with YFP-expressing CD11c + cells (green) and blood vessels (red). 3

Wild-type C57BL/6N mice were purchased from Orient Bio Inc. (Suwon, Korea). CX3CR1-GFP transgenic mice. labeling of endothelial cells in blood vessels via intravenous injection of Dylight 649-conjugated tomato lectin or green…

---

This column takes 1/3 of the page

This column takes 2/3 of the page

Application of CLARITY to the analysis human teeth, with a special emphasis in the dental pulp innervation and vasculature. Adult canine and premolar teeth extracted for orthodontic reasons, immersed in a 4% formaldehyde, acrylamide and bisacrylamide solution for 72 hours at 4 °C (Fig. 1A). The hydrogel pre-polymer was then thermally polymerized by incubation at 37 °C for 3 h inside a vacuum chamber filled with nitrogen gas. Subsequently the dental pulp/hydrogel hybrids were transferred into conic tubes and immersed in a clearing solution of SDS and boric acid for 6–8 weeks at 37 °C in a passive method to remove the lipid bilayers resulting in a semi-transparent tissue/hydrogel hybrid with preserved structural and molecular information. This hybrid tissue was stained for PGP9.5, a neuron specific marker, and for CD31, an integral membrane glycoprotein which is present in high levels on early and mature endothelial cells, especially at junctions between adjacent cells

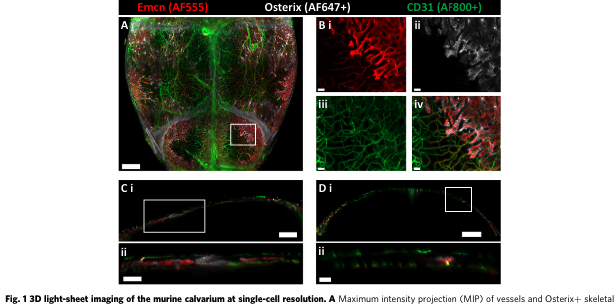

• 3D imaging of the cranial microvascular environment at single-cell resolution Rindone et al. (2021)

@rindone2021

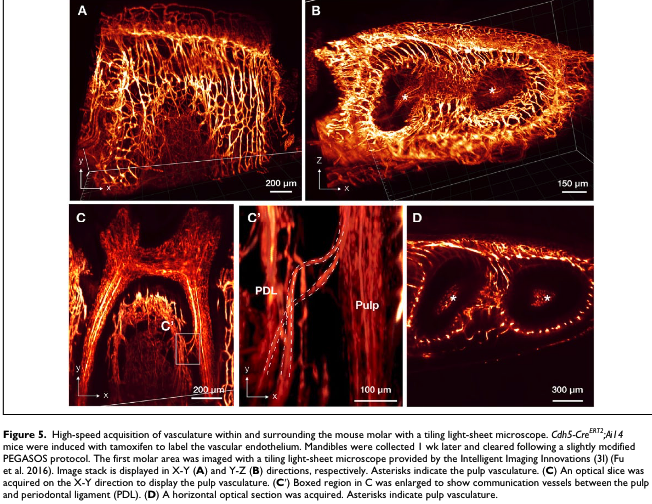

• Tissue Clearing and Its Application to Bone and Dental Tissues Jing et al. (2019): Applications of LSFM have been demonstrated by many TC studies, including CLARITY, CUBIC, uDISCO, SeeDB2, and Bone CLARITY (Susaki et al. 2014; Ke et al. 2016; Pan et al. 2016; Greenbaum et al. 2017).

jing2019

• 3D imaging of calcium dynamics and 3D imaging of cellular microstructure Sparks et al. (2020): studying dynamic events in cardiac tissue at high speed in 3D and the correlation of these events to cell microstructure by time-lapse imaging of calcium dynamics in a live cardiomyocyte.

sparks2020

Potential ideas:

Since there are not many articles using light-sheet microscope, there is room for:

1. Number of osteoprogenitors contained within a volume of mouse mandible (molar) and map their 3D spatial distribution. ref. Greenbaum et al. (2017)
2. Volumetric (3D) Distribution of vascular network in relation to Progenitor cells (Osteo, cementoblasts) in PDL and calvaria.
3. Distribution of neurovascular network in PDL. Does mechanical response is only by cell to cell comunication or is there a neural response?
4. Calcium dynamics in bone repair (in calvaria defect, implant and tooth movement of PDL) like in sparks et al.

References

• Otomo et al. descSPIM: Affordable and Easy-to-Build Light-Sheet Microscopy for Clearing Technique Users. bioRxiv (2023)

• Susaki et al. Versatile whole-organ/body staining and imaging based on electrolyte-gel properties of biological tissues. Nat Commun 11, 1982 (2020)

• Matsumoto et al. Advanced CUBIC tissue clearing for whole-organ cell profiling. Nat Protoc 14, 3506–3537 (2019)

• CUBIC resource website

---------
